CLAIRFLAM 775 775C/103+
The Clairflam range chose a contemporary aesthetic.
The door, the firedogs and the decoration of the bottom plates are under the sign of "design".
The 775 model emphasizes particularly this trend. The cleaning of the chrome steel door is very easy.
Technical datas
| Output | 16 kW |
| Efficiency | > 70 % |
| CO rating | < 0.22 % |
| Testing standard | EN 13229 |
| Log size | 50 cm |
| Width - Height - Depth | 775 x 760 x 478 mm |
| Flue pipe diameter | 200 mm |
| Weight | 150 Kg |
| Type of fuel | Woodlog |
| Flamme Verte label |  |
Description
• Chromed cast-iron door with lateral opening
• Pyrolysis glass.
• Body, door and flue gas tunnel made of grey aluminized cast iron FGL250
• Flue by-pass device
• Introduction of the primary air in the heart of the combustion through the firedogs (patented system)
• Primary air control
• Double combustion
• Deflector
• Hidden hinges (front view)
• the bottom of the fireplace can be removed from the inside
• Removable firedogs
• Body and flue gas tunnel equipped with fins
• Galvanized steel screw parts
• 5-years warranty
3 versions available :
• Chromed cast-iron door with lateral opening (item nbr. 775C/103+)
• Aluminized grey cast-iron door with lateral opening (item nbr. 775C/101+)
• Brass cast-iron door with lateral opening (item nbr. 775C/102+)

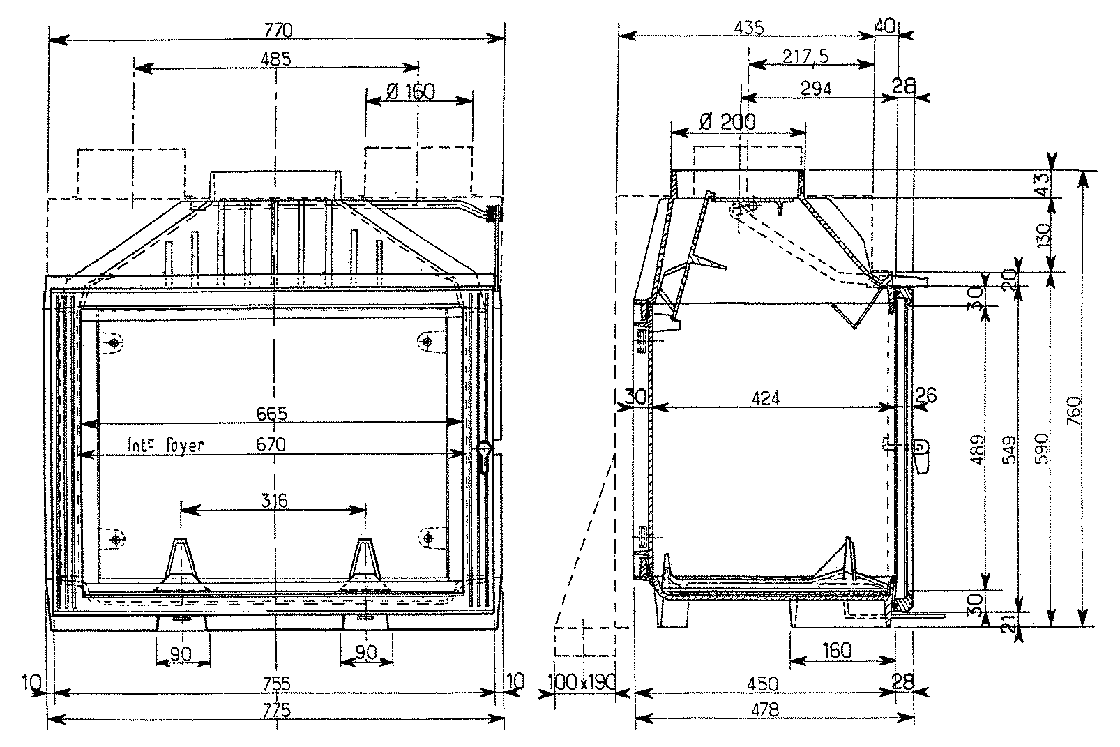

Drawing
