CLAIRFLAM 685 685C/083
The design of the Clairflam fireplace (685, 775, 880) offers many advantages:
. a very attractive price
. a wide view of the fire
. increased performances (more efficiency, less rejected gas) and a cleaner glass thanks to the combination between the pyrolysis glass (83+ et 84+) and the double combustion.
Technical datas
| Output | 12 kW |
| Efficiency | > 73 % |
| CO rating | < 0.13 % |
| Testing standard | EN 13229 |
| Log size | 50 cm |
| Width - Height - Depth | 685 x 678 x 428 mm |
| Flue pipe diameter | 200 mm |
| Weight | 112 Kg |
| Type of fuel | Woodlog |
| Flamme Verte label |  |
Description
• Flamme Verte label in process
• Grey aluminized cast-iron door that can be laterally open.
• Pyrolysis glass ( + at the end of the item number) or vitroceramic glass, according to choice.
• Body, door and flue gas tunnel made of grey aluminized cast-iron FGL250
• Flue by-pass device
• Introduction of the primary air in the heart of the combustion through the firedogs (patented system)
• Primary air control
• Deflectors made of vermiculite
• Hidden hinges (front view)
• Removable firedogs
• Body and flue gas tunnel equipped with fins
• Galvanized steel screw parts
• 5-years warranty
4 versions available :
• Grey cast-iron aluminized door with side opening, vitroceramic glass
(item nbr. 685C/083)
• Grey cast-iron aluminized door with side opening, pyrolysis glass
(item nbr. 685C/083+)
• Brass cast-iron door with side opening, vitroceramic glass
(item nbr. 685C/084)
• Brass cast-iron door with side opening, pyrolysis glass
(item nbr.685C/084+)
5 years warranty

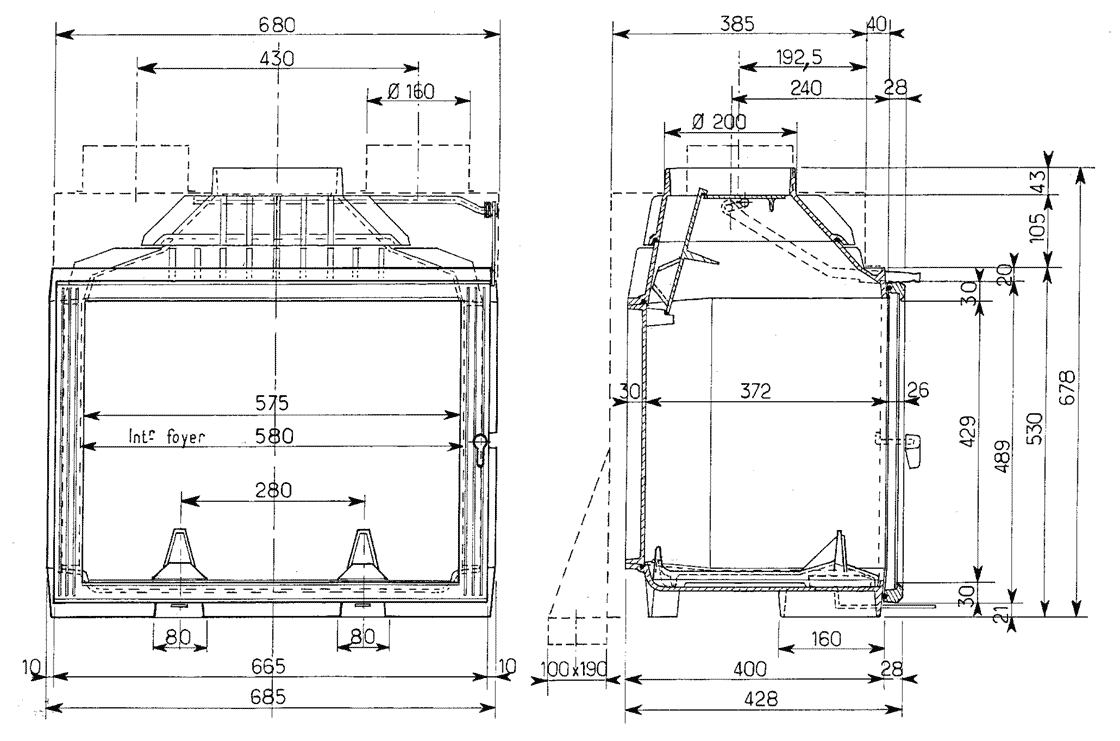

Drawing
Accessories
Kit for air supply diameter 125 mm 685/107
Adaptable to the 4 versions of Clairflam
